The handle base i29 and switch connector I28 of textile accessories are made of gray iron HT. They are used for the switch handle of loom. The shaft hole of handle base I28 is 14mm, 82mm in length and 6.4cm in width, which is connected with f233. The length of textile handle base i29 is 12.3cm, 5.4cm in width, 11mm in shaft hole, which is connected with switch rod I10. I29 is a special textile accessory, which can not be found in the new version of the sketch book, but it is quite easy to install and use, and the failure rate is low.

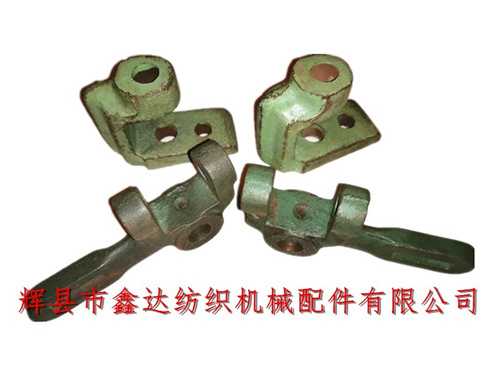

The above figure shows the i29 accessory, with a thickness of 22.5MM, and the diameter of its plane shaft hole is 14mm, which is fixed by f233 (14 * 85mm); the upper two holes are 11.5mm, and i33 pin is installed, with an error of 1-1.5mm.
The connector I28 of loom handle base is installed on the I2 switch base. The figure above shows I28 and i29. They can be used for the shuttle looms with 1511 narrow width and 1515 wide door width, regardless of left hand and right hand. One of them is selected for each loom.
The following figure shows the top view of I28 handle base connector and i29 switch handle base:
Xinda Textile accessories, textile joints, handle base accessories starting order: I28 = 10, i29 = 100, i29 is convenient for the maintenance of the loom, if you need to purchase the switch parts of the loom, you can provide accurate part number for consultation.
