Huixian Xinda Textile machinery accessories supply circuit board WAL-13M of Sulzer Sulzer Pu projectile loom, The Pu type SFW11E (911 302 104) is replaced by two shuttle circuit boards. The domestic electronic control boards WIS17 (880 903000), PFR 13, PFR21, WAL11, GS13, NTL11, NTM11, EST 14 (911 302 556), WAL12 (911 302 526) are installed in different types of shuttle loom control boxes.

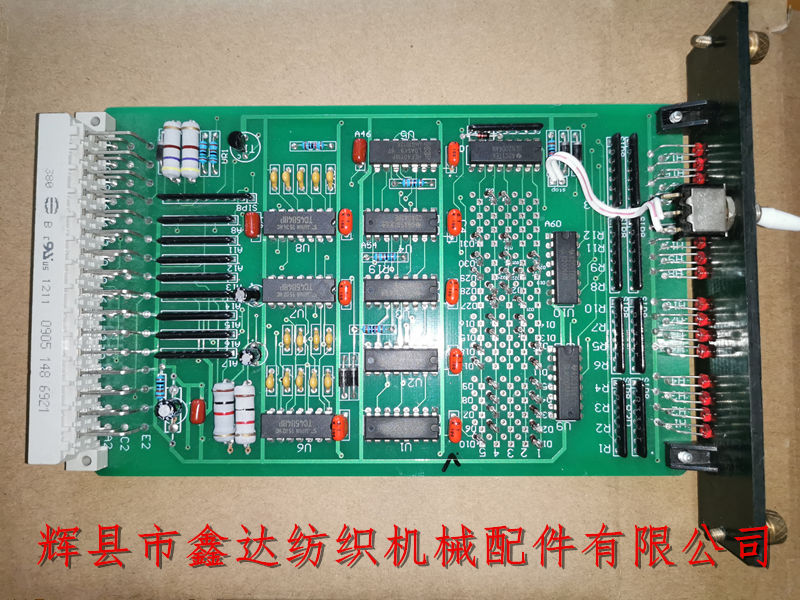

WAL-13M is improved on the basis of WAL-12, and the above picture is taken in kind. The circuit board is packed in kraft carton with 1 piece in each box. Our company provides stable electrical products for projectile loom.

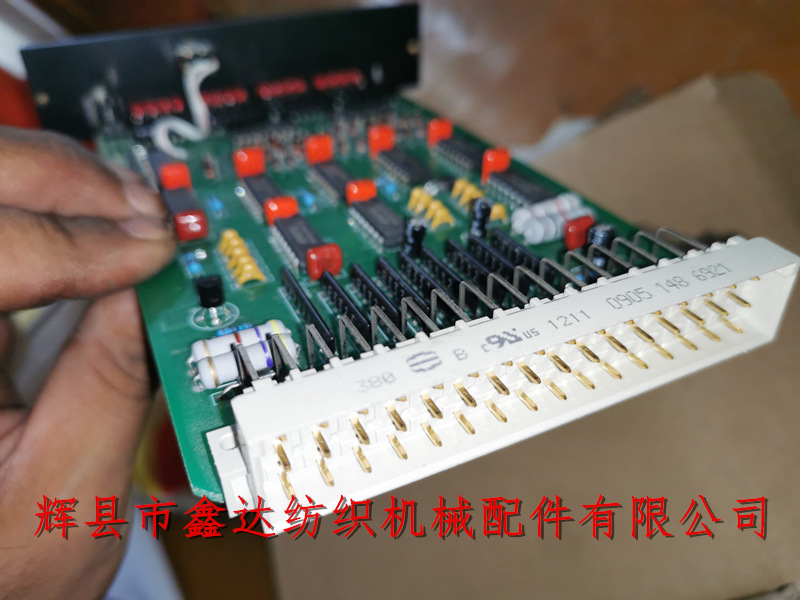

The side view of the shuttle circuit board (WAL-13M) shows the 48 pin pin socket as shown in the above figure.
On the front panel of Sulzer chip shuttle wal13m, the signs of each indicator light are clear. Due to the light problem, the color has some deviation. Please refer to the real object.

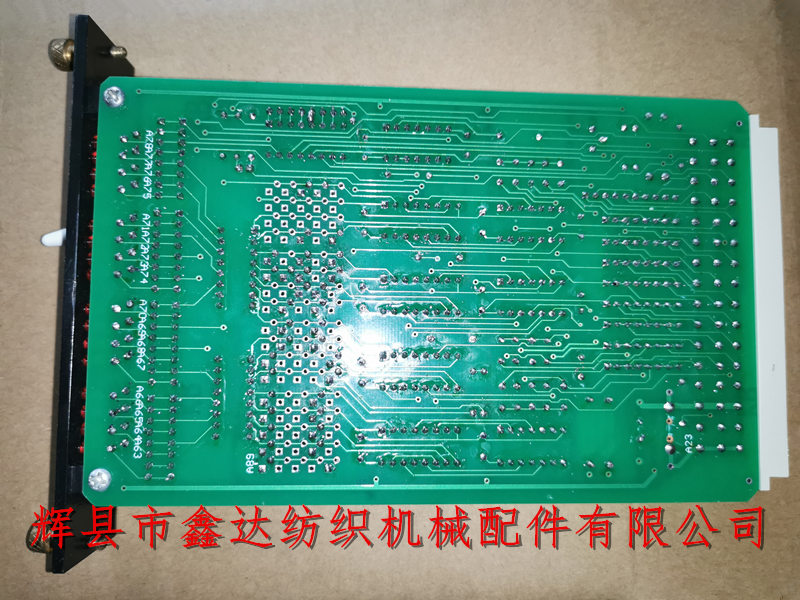

The back drawing of WAL-13M (WAL-12 piece No. 911 302 526) circuit board is shown above. If you need to purchase shuttle loom main board, TW circuit board, Sulzer electric control board, sensor, holding electromagnet and other shuttle circuit equipment accessories, please contact our company for consultation and negotiation.
