Huixian Xinda Textile Machinery Accessories provides 214M C-33 triangular stator ear multi shuttle machine shuttle box accessories. The diameter of the two circular holes on the C-33 stator ears is 10 millimeters, with a center to center distance of 38 millimeters and a distance of 38 millimeters from the bottom edge. The two circular holes fix the C-35 shuttle box stator element, and the screw fixing hole in the middle is installed on the ears of the C-38 shuttle box cover plate.

C-33 stator ears are not divided into left and right phones, and one is installed and used on each set of multiple shuttle boxes. The 214M multi shuttle device can be installed on shuttle looms of models 1511, 1515, GA615, etc.

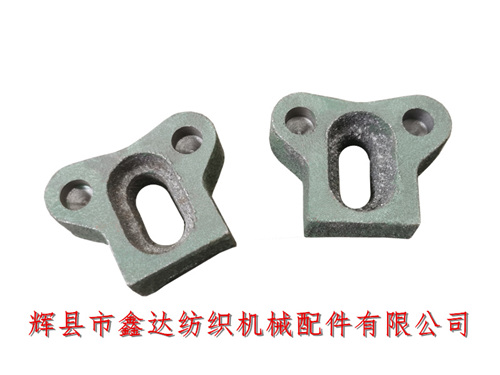

The above figure shows the front and back views of C-33. The two circular holes are non transparent and used to support and fix the C-351515 multi shuttle loom accessories, GA615 multi arm multi shuttle parts, and C-33 is a vulnerable part of the loom multi shuttle box. Multi shuttle machine shuttle box accessories - C-33 stator, C-35 multi shuttle machine accessories, C-38 shuttle box accessories, all belong to the 1515 textile machine accessories.

The packaging quantity for the 214M accessory stator ears is 20 pieces per string, with a minimum order quantity of 10 pieces or more. If you need to purchase accessories for the 214M C-33 triangular stator ear multi shuttle machine shuttle box, please contact our company's Manager Yang for consultation.
