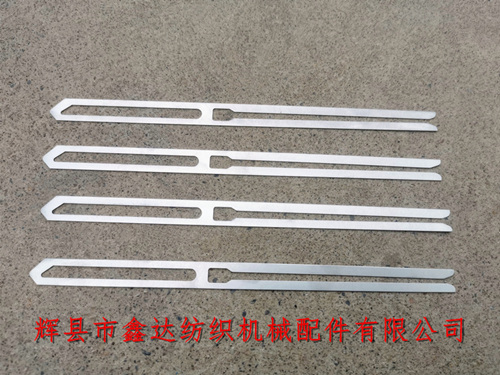

The stainless steel opened drop wires for weaving machine equipment is provided by Xinda Textile Machinery Parts Co., Ltd. in Huixian City, with a specification of MOU 180*11*0.4mm. It refers to the length of the weaving machine stop plate being 180mm, the width being 11mm, and the thickness being 0.4mm. The material of the stainless steel droppers is divided into 304 and 201, and the thickness of the stop plate is divided into normal 0.4mm and non-standard 0.36mm. Its main purpose is to assist the weaving machine warp stop motions in automatically stopping yarn breakage.
Opening and closing refer to the tail shape of the stop plate(droppers,drop wire), with the opening position being a 1/4 circle arc shape, the inner width of the opening groove being 3mm, and the inner length being 95mm; the inner width of the middle square hole is 6mm, and the inner cavity length is 10mm (including a 45 ° bent edge); The inner width of the upper enclosed space is 5mm, and the inner length is 65mm (up to the diagonal point).
The packaging quantity of each box of Drop Wires is 1000 pieces, each bundle is 200 pieces (5 bundles per box), the quantity per box is 10 boxes (i.e. 10*1000=10000 pieces), the thickness is 0.36mm, and the weight per box is 38.5 kilograms.
The 180 opening Drop Wires(warp stopper,droppers) is an accessory used in weaving machinery in textile equipment, also known as Rapier Loom equipment. It has the characteristics of weight gain and easy installation, and is made of stainless steel material, which is different from stainless iron; The packaging diagram for 180 * 11 * 0.4mm is as follows:
The packaging wooden box for the warp stopping sheet is made of plywood material (as shown in the picture above); If you need to purchase stainless steel warp stopping plates, 180 warp stopping sheet, open warp droppers, weaving machine hardware equipment, shuttleless machine textile equipment and other products, please contact Mr. Yang from our company for negotiation.
